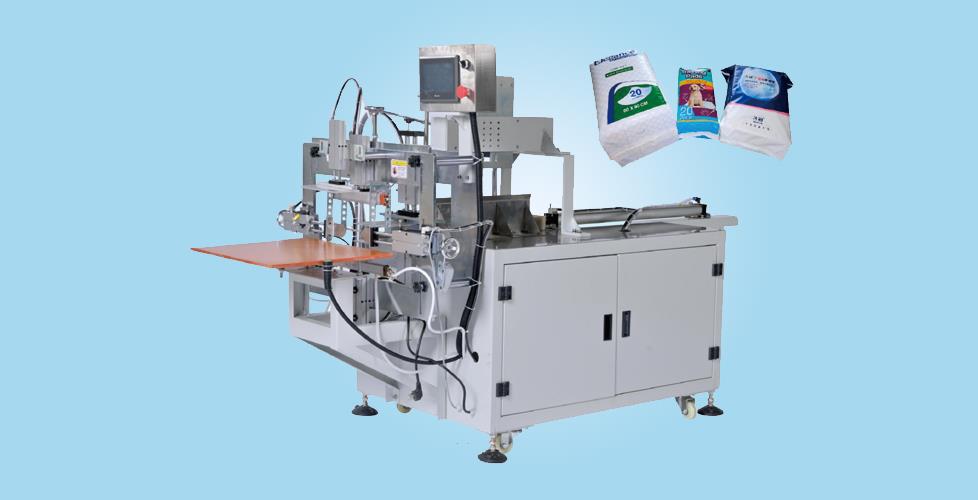

800-A2 護理墊紙尿褲拉拉褲包裝機（大包平放）
性能與特點：Performance and feature：1、本機用于護理墊、寵物墊等裝袋封口的半自動包裝機，入袋方式為平放；It is used for packing underpads,pet training pads etc. The bagging way is flat.2、采用 PLC 電腦編程控制，觸摸屏顯示參數設置參數；PLC computer programming control, LCD displays and adjusts paramete…
產品介紹:
性能與特點：
Performance and feature：
1、本機用于護理墊、寵物墊等裝袋封口的半自動包裝機，入袋方式為平放；
It is used for packing underpads,pet training pads etc. The bagging way is flat.
2、采用 PLC 電腦編程控制，觸摸屏顯示參數設置參數；
PLC computer programming control, LCD displays and adjusts parameters;
3、本機 2 個人操作，3個人可操作兩臺，降低企業成產成本，減小生產空間；
Its operated by 2 person, and 3 person can operate two units, which reduces production space and cost;
4、整機結構合理，性能穩定，帶水冷保護發熱絲，發熱絲和耐高溫膠布經久耐用；
It has reasonable structure, stable performance, with water-cooled heat wire protection, make the heating wire and high temperature resistant adhesive durable;
5、先感應后工作，工人操作更安全；
Induction before working , more safe to operate;
6、同一臺機可包裝各種規格產品.
Can be used for various products packaging.
Performance and feature：
1、本機用于護理墊、寵物墊等裝袋封口的半自動包裝機，入袋方式為平放；
It is used for packing underpads,pet training pads etc. The bagging way is flat.
2、采用 PLC 電腦編程控制，觸摸屏顯示參數設置參數；
PLC computer programming control, LCD displays and adjusts parameters;
3、本機 2 個人操作，3個人可操作兩臺，降低企業成產成本，減小生產空間；
Its operated by 2 person, and 3 person can operate two units, which reduces production space and cost;
4、整機結構合理，性能穩定，帶水冷保護發熱絲，發熱絲和耐高溫膠布經久耐用；
It has reasonable structure, stable performance, with water-cooled heat wire protection, make the heating wire and high temperature resistant adhesive durable;
5、先感應后工作，工人操作更安全；
Induction before working , more safe to operate;
6、同一臺機可包裝各種規格產品.
Can be used for various products packaging.
技術參數:
|
包裝速度 Packing speed |
8-10 包/分鐘 8-10 bags/min |
|
電源電壓 Power supply |
220V，50HZ |
|
氣源電壓 Air pressure |
0.5MPA(客戶自備) 0.5MPA(self prepare) |
|
總功率 Total power |
0.4KW |
|
包裝尺寸 Packing size (mm) |
長：100-200/200-450寬：100-150/150-280高：50-80/80-180（按樣品定制） Length 100-200 or 200-450×Width 100-150 or 150-280×Height 50-80 or 80-180, Customized on your sample |
|
機器尺寸 Dimension (mm) |
長2200×寬1280×高1450 mm Length 2200 × Width 1280 × Height 1450 mm |
|
重量 Weight |
400KG |
